Diamond&Cbn Grinding Wheel;

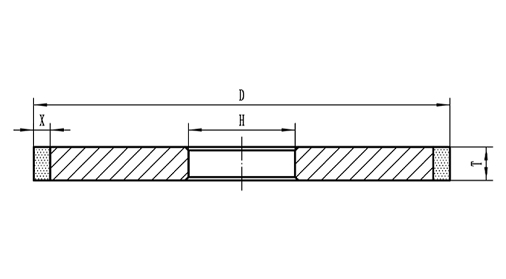

1A1 stands for Parallel Grinding Wheel (straight cylindrical without concave surface), which is the most basic general type of superhard grinding wheel, suitable for surface grinding and external cylindrical grinding
According to the binder, it can be divided into four categories:
| Shaped | Material | Product Diameter | Product Hole | Product Thickness | Abrasive Width |
| 1A1 Shaped ginding wheel | Diamond/cbn | 50mm | 10mm | 5mm | 5mm |
| Diamond/cbn | 100mm | 20mm | 10mm | 10mm | |
| Diamond/cbn | 125mm | 32mm | 10mm | 10mm | |
| Diamond/cbn | 150mm | 31.75mm | 10mm | 5mm | |
| Diamond/cbn | 175mm | 31.75mm | 10mm | 5mm | |
| Diamond/cbn | 180mm | 31.75mm | 10mm | 10mm | |
| Diamond/cbn | 300mm | 127mm | 25mm | 5mm | |
| Diamond/cbn | 500mm | 127mm | 40mm | 10mm | |
| Diamond/cbn | 500mm | 203.2mm | 50mm | 10mm | |
| We can provide customized grinding wheel services. please send a message to: admin@hnhongxiang.com | |||||
1A1-Resin-Grinding-Wheel-For-Thermal-Spraying

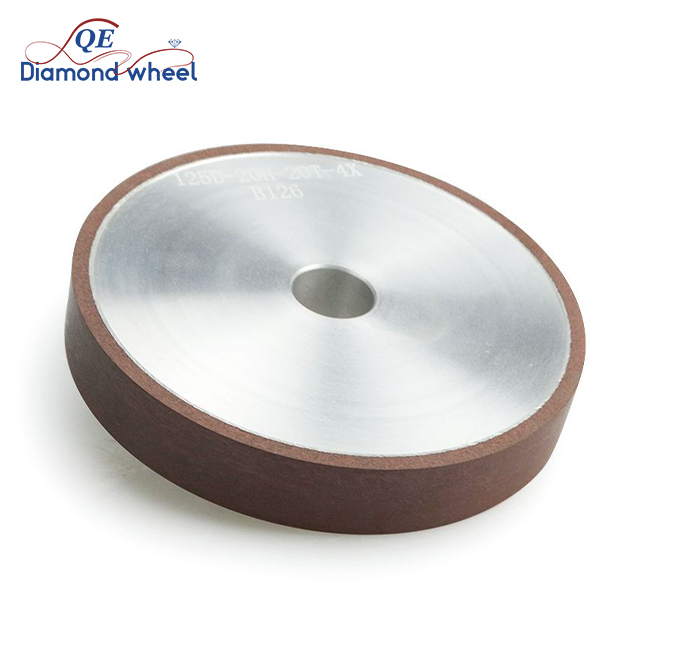

1A1 Shaped Resin Bond Grinding Wheel
1A1 Shaped Resin Bond Grinding Wheel
300mm 1A1 Shaped Resin Bond Grinding Wheel
