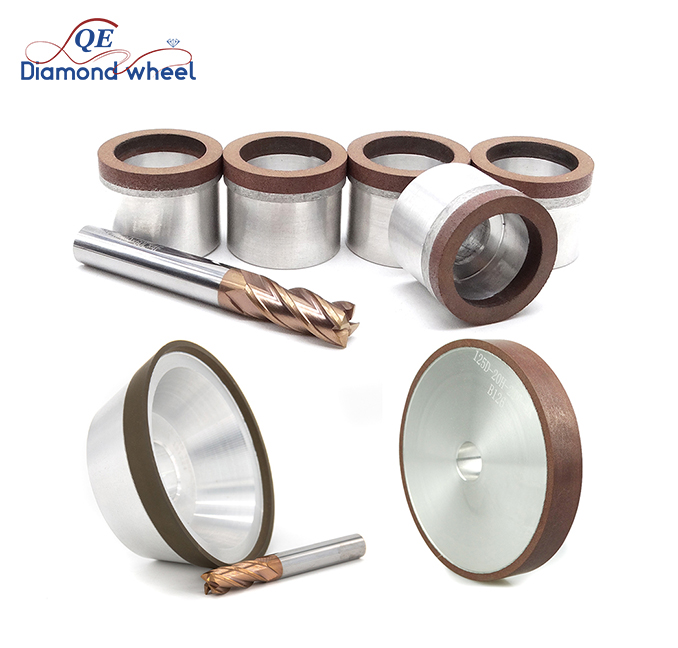

Resin grinding wheels for milling cutters;

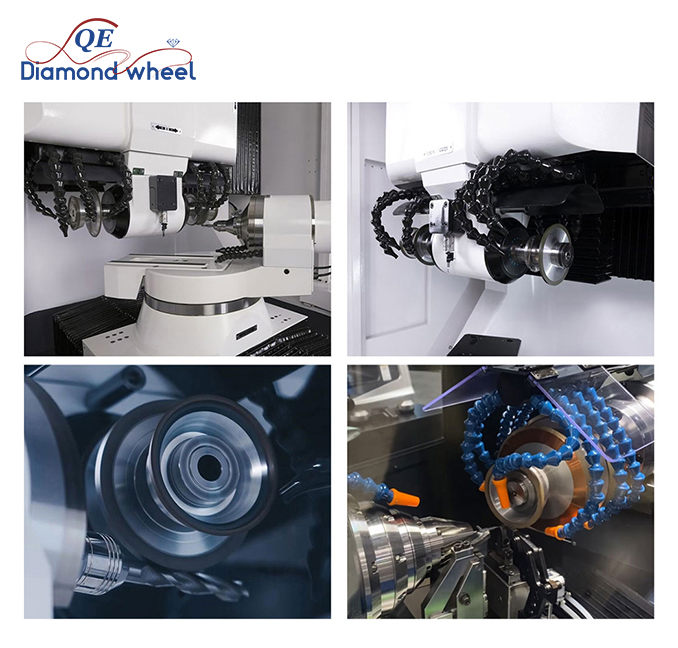

Resin bond diamond CBN grinding wheels are suitable for grinding and resharpening of carbide or high speed steel end mills, which is designed for end mill manufacturers or resharpening service providers. Grinding wheels are ideal for CNC end mill grinders and universal tool grinding machines.

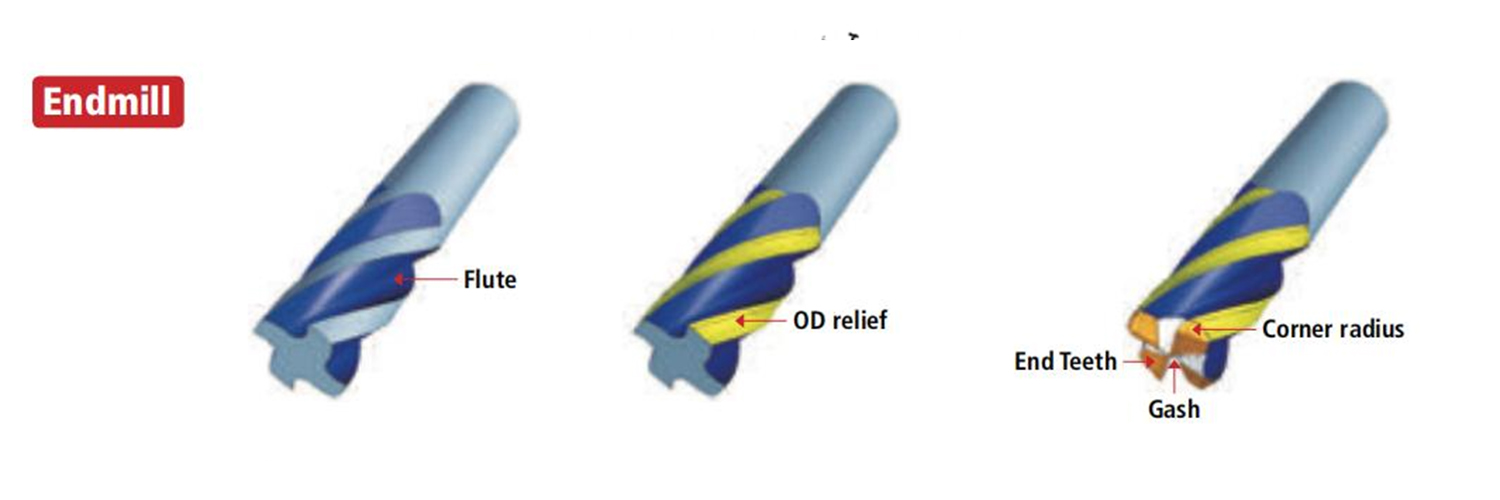

Usage of Resin Grinding Wheels: flute grinding, gash grinding, OD relief and end teeth grinding.

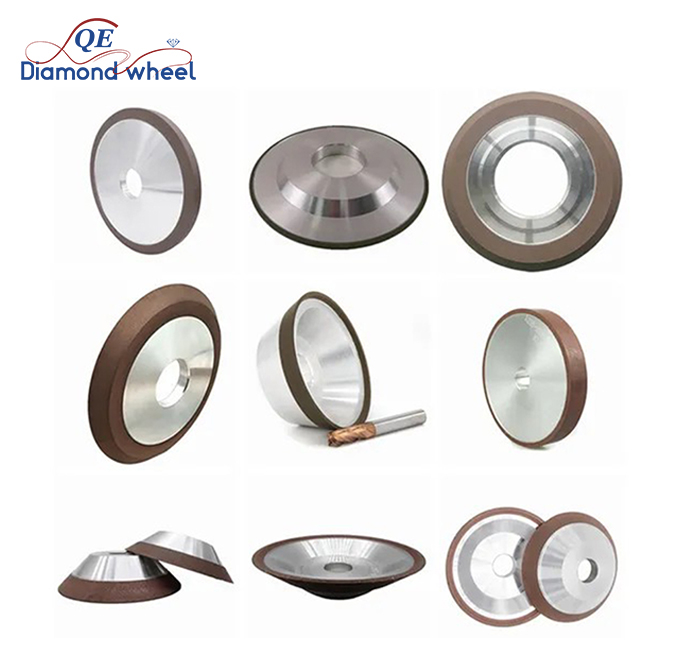

Wheel Shaped: 1A1,1V1,3V1,3V1,14A1,14F1,14V1,4A9
Wheel Grit Size: Carbide : D46-D91 / HSS : B64-B107
Wheel Shaped: 6A9,11V9,12A2,12V9,12V5,6V5
Wheel Grit Size: Carbide : D20-D46 / HSS : B46-B91
Wheel Shaped:1A1,1V1,3V1,12V9,14V1
Wheel Grit Size:Carbide : D30-D76 / HSS : B76-B107
| Type | D (mm) | T (mm) | X (mm) | H (mm) | V |
| 1A1 Shaped | 75 | 10 | 5 | 20 | |
| 100 | 6, 10, 12 | 5, 10 | 20 | ||
| 125 | 10, 12, 16 | 10 | 20 | ||
| 150 | 12 | 10 | 20 | ||
| Type | D (mm) | T (mm) | X (mm) | H (mm) | V |
| 1V1 Shaped | 75 | 10 | 5 | 20 | 45 |
| 100 | 10, 15 | 5 | 20 | 45 | |
| 125 | 6, 10, 15 | 5 | 20 | 45 | |
| 150 | 12 | 5 | 20 | 45 | |
| Type | D (mm) | U (mm) | X (mm) | H (mm) | |
| 14F1 Shaped | 100 | 4 | 6 | 20 | |
| 125 | 3 | 5 | 20 | ||
| 150 | 1,5 | 5, 7 | 20 | ||

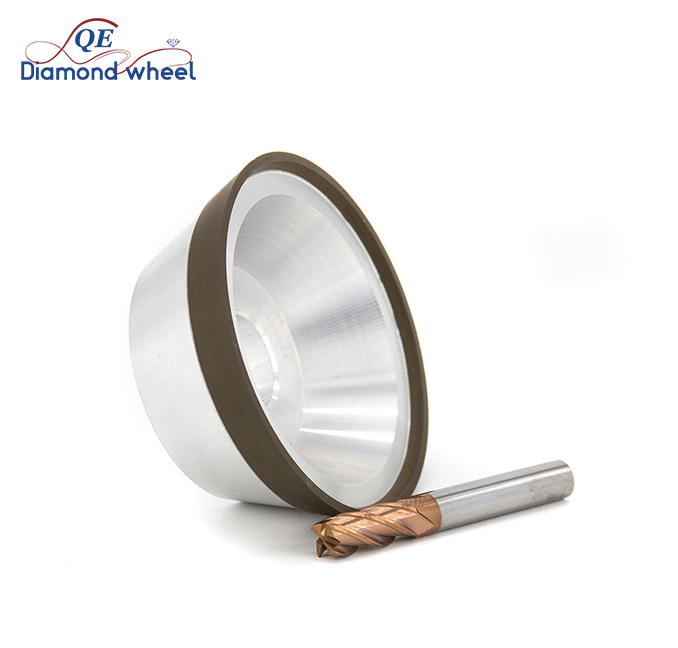

| Type | D(mm) | T(mm) | X(mm) | H(mm) | |
| 11V9 Shaped | 75 | 30 | 10 | 20,31.75 | |
| 100 | 35 | 10 | 20,31.75 | ||
| 125 | 35 | 10 | 20,31.75 | ||
| Type | D (mm) | T(mm) | X (mm) | H(mm) | |
| 12V9 Shaped | 75 | 20 | 10 | 20, 31.75 | |
| 100 | 25 | 10 | 20, 31.75 | ||
| 125 | 25 | 10 | 20, 31.75 | ||
| 150 | 25 | 10 | 20, 31.75 | ||
| We can provide you with customized grinding wheel services. If you need other sizes and grits, please send a message to: admin@qediamonds.com | |||||
