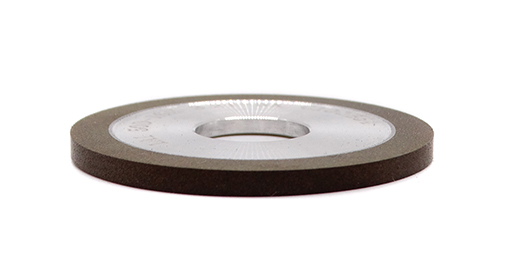

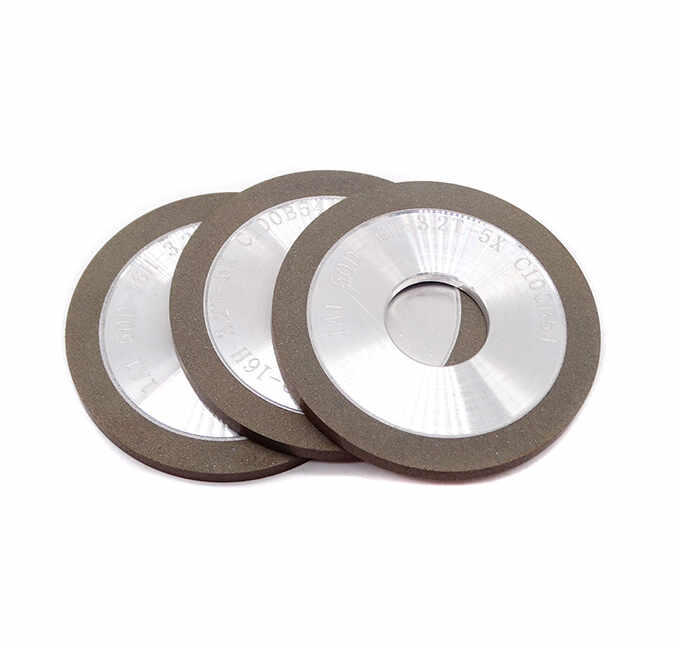

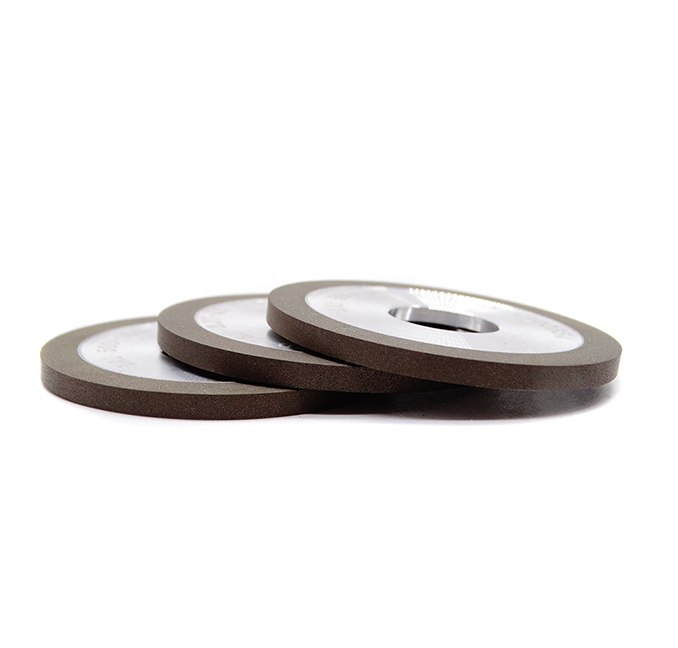

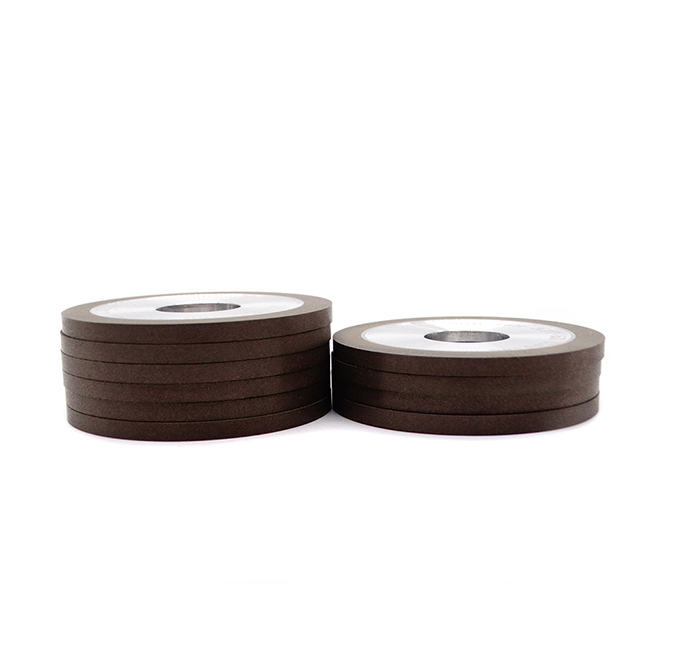

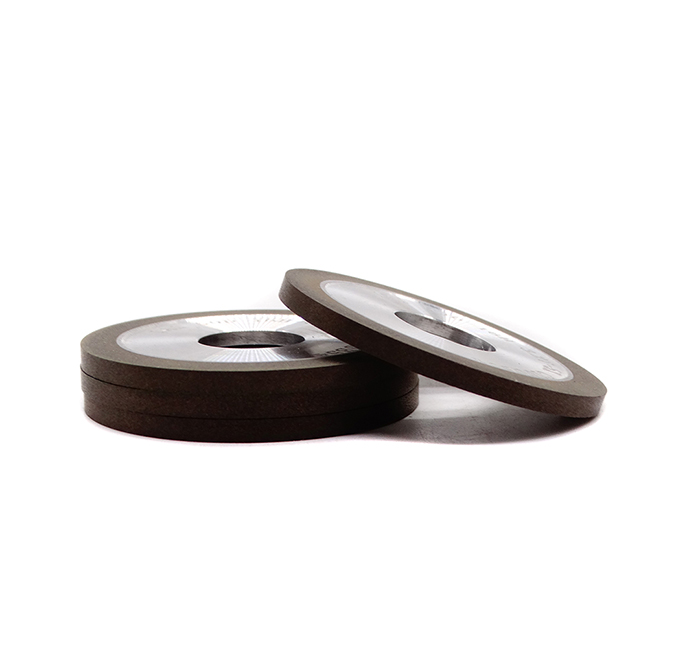

Type 1A1 is a flat grinding wheel (parallel grinding wheel), suitable for cylindrical grinding, surface finishing and stainless steel grooving. It is made of resin bond and CBN abrasive. The outer diameter, aperture and thickness can be customized. Typical specifications are 125×10×31.75mm (outer diameter×thickness×aperture).
Slotting and profile grinding of stainless steel shafts and gear hobs;
Surface finishing and polishing of hardened steel and high-speed steel molds.
|

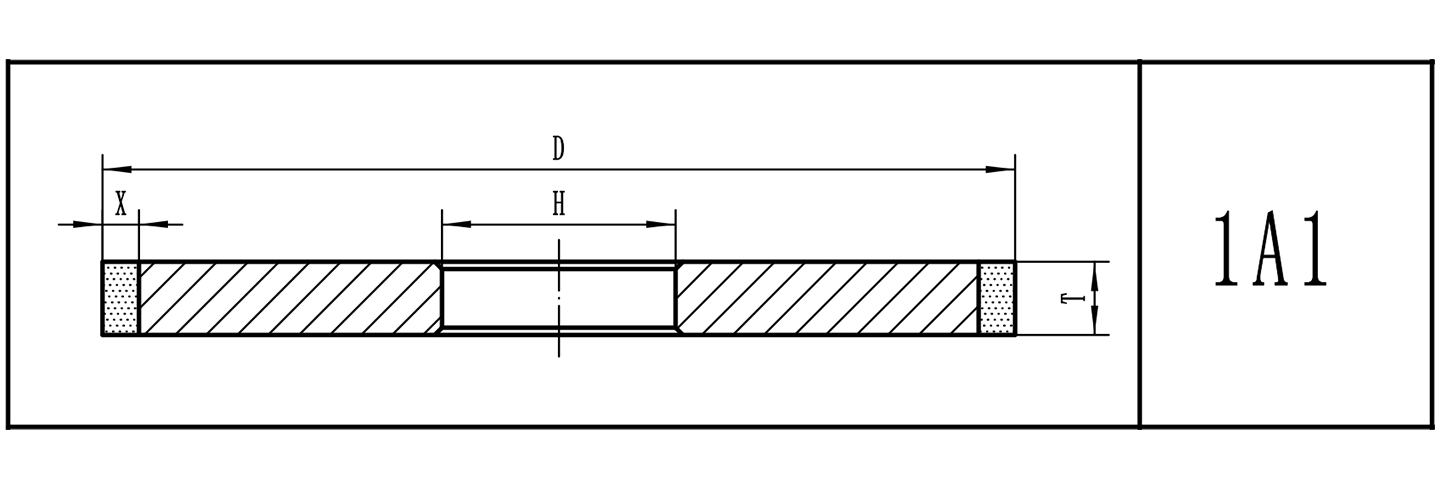

直径 （Diameter）D |
孔径 （Hole）H |
厚度 （Thickness）T |
磨料宽度 （Abrasive Width）W |
|
|
|
25 |
10 |
6 |
6 |
|
|
50 |
12 |
6 |
6 |
|
|
100 |
20 |
10 |
10 |
|
|
200 |
32 |
10 |
10 |
|
|
300 |
127 |
25 |
10 |
|
|
600 |
254 |
25 |
10 |
|
|
750 |
304.8 |
25 |
50 |
|
If you need to customize other sizes of grinding wheels, please send us the size information you need, including diameter/aperture/thickness/abrasive width/grain size to our email address, and we will contact you as soon as possible and give you a quote. |
||||
