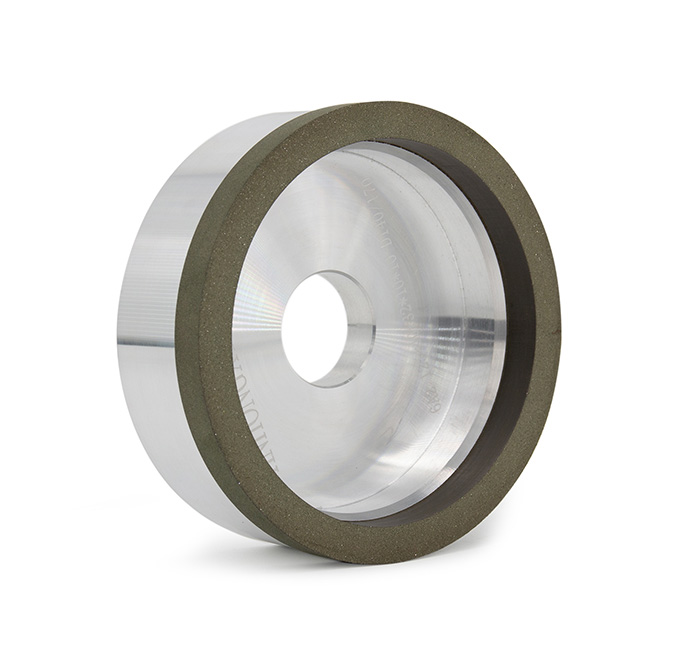

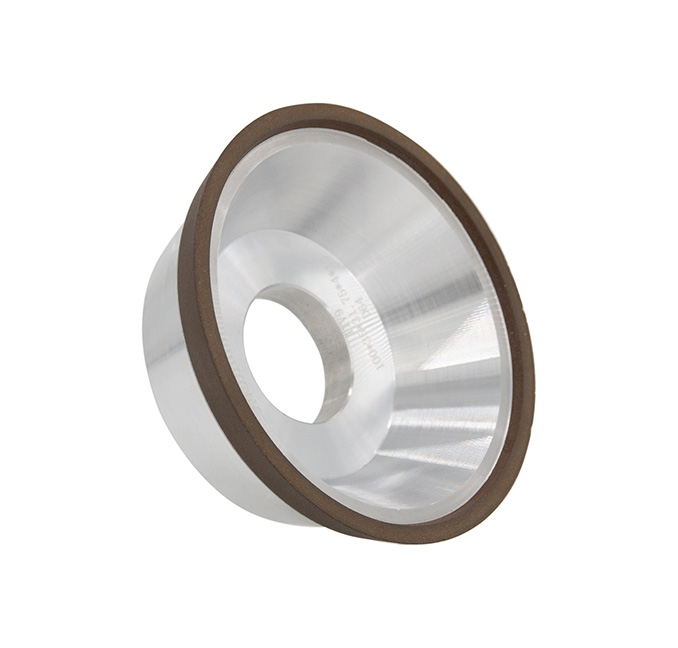

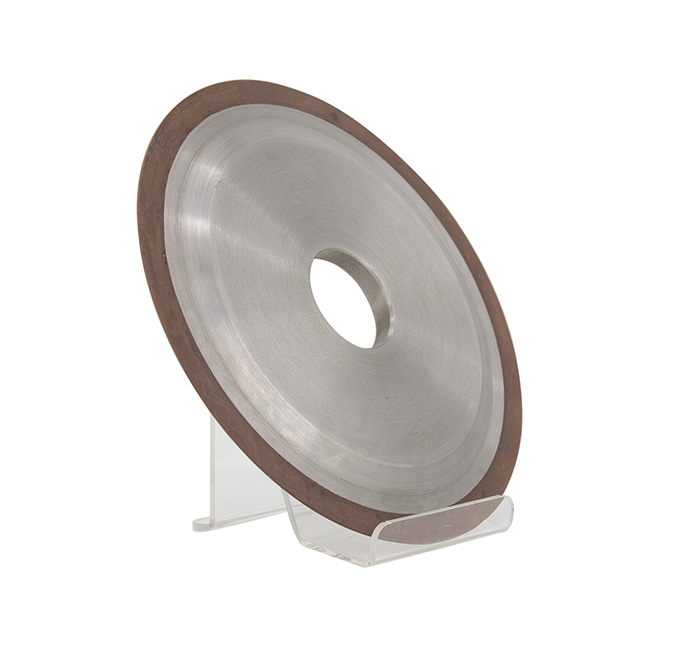

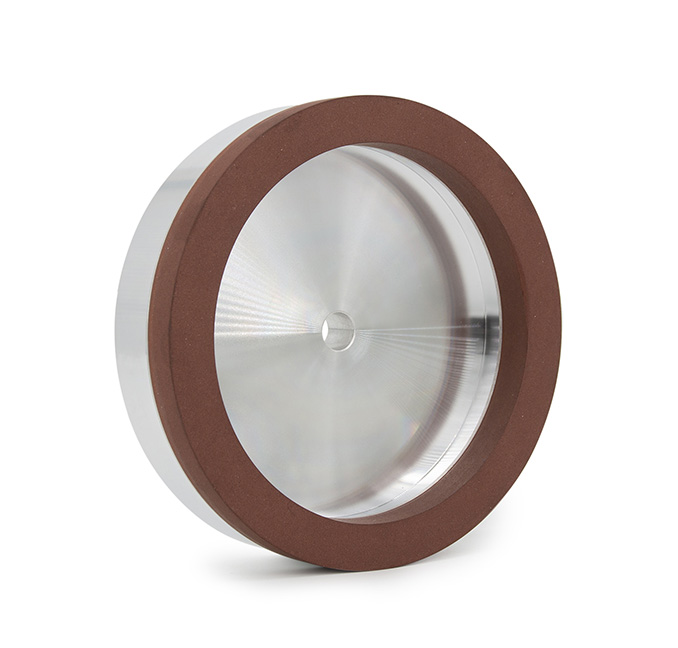

Resin Bond Diamond Grinding Wheel

Carbide Tool Grinding:

Used for grinding carbide tools, high-speed steel tools, and milling operations to maintain the sharpness and precision of the cutting edge.

Gear grinding: Electroplated or ceramic CBN grinding wheel can achieve high speed and high precision (6-7 grade gear accuracy), with a roughness as low as Ra0.63μm, reducing dressing time.

Carbide Profile Grinding:

Suitable for carbide arc surface profile grinding, gear hobbing and thread tool profile processing, ensuring the processing quality of complex geometric shapes.

Guide rails and molded shafts: The high shape retention of CBN grinding wheels is suitable for precision grinding of long surfaces or complex contours by.

High-temperature Sensitive Materials:

Resin bond grinding wheels generate less heat during grinding, and are suitable for processing materials that are easily affected by heat (such as resin-based composite materials).

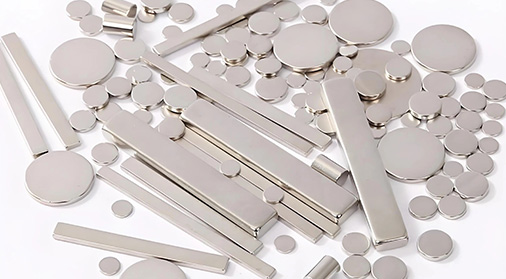

Semiconductor And Magnetic Materials:

Suitable for processing precision components such as semiconductor wafers and magnetic materials to meet the requirements of high precision and low thermal damage.

Ceramics And Glass:

Used for precision grinding and polishing of high-hardness materials such as ceramics, optical glass, and agate to reduce surface damage and improve finish.

Gauges And Coreless Grinding:

Double-sided concave grinding wheels are used for precision grinding of gauges and processing of coreless grinding machines to ensure dimensional stability and surface consistency.
