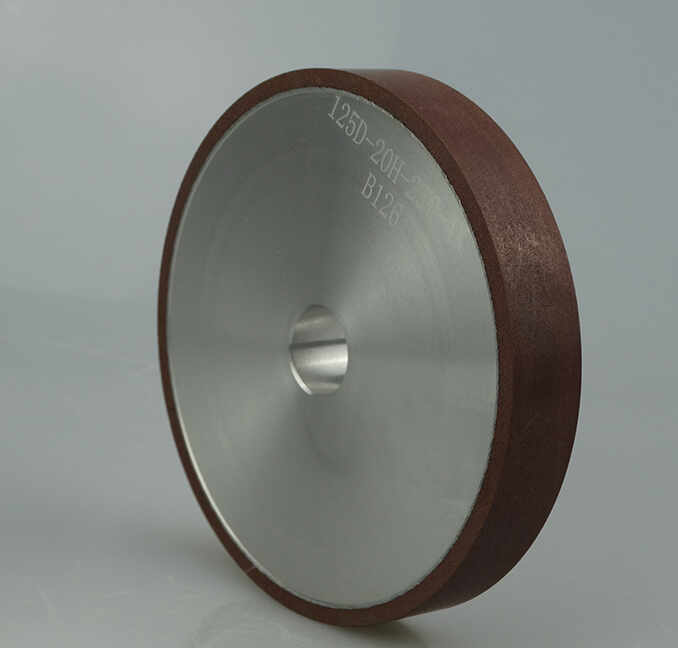

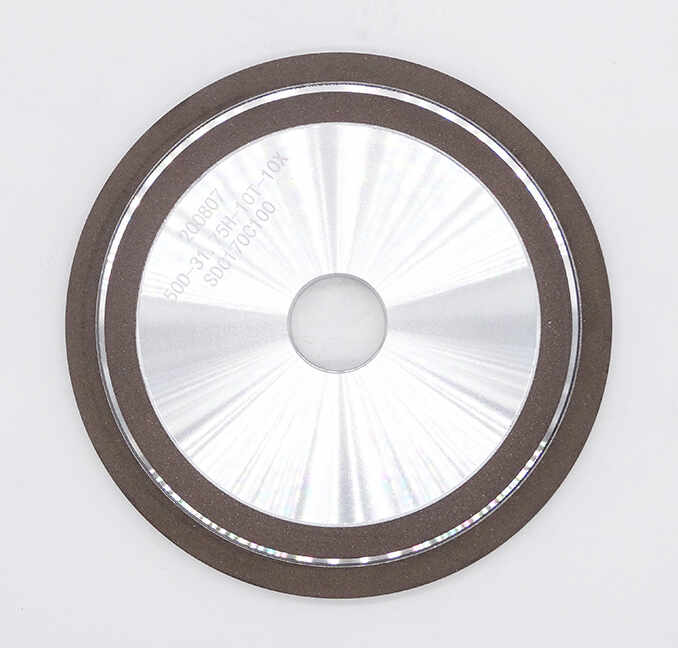

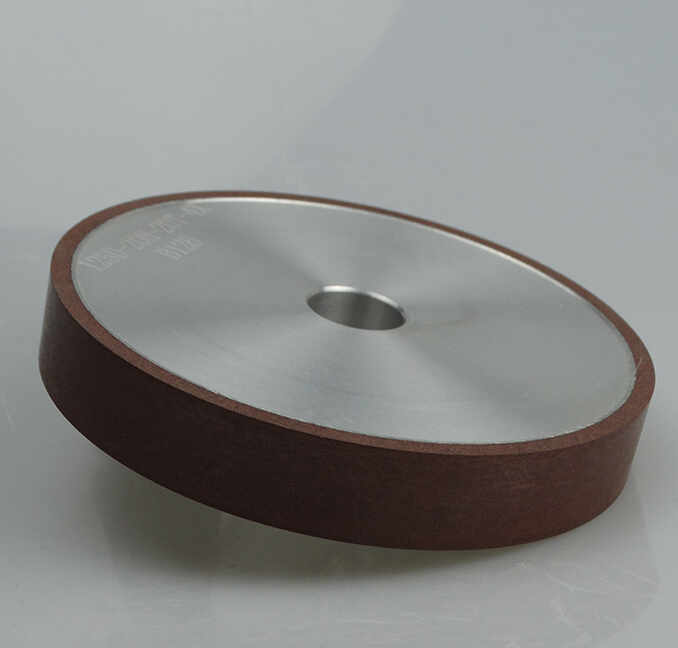

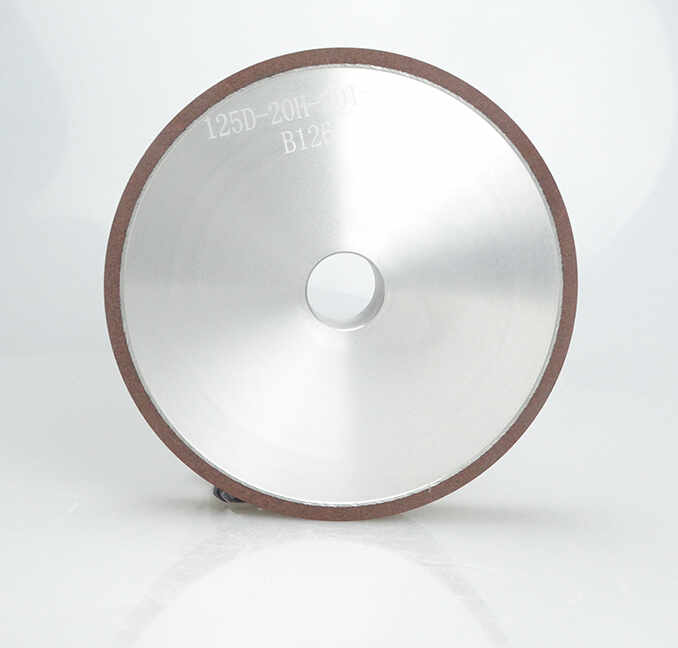

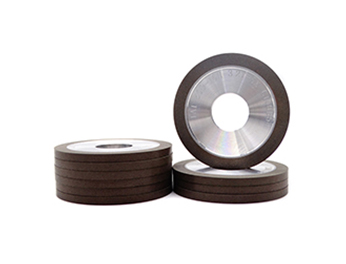

1A1 resin diamond grinding wheel is a flat grinding wheel, which is made of resin bond and diamond abrasive. The outer diameter, hole diameter and thickness can be customized. Typical specifications are 125×10×31.75mm (outer diameter×thickness×hole diameter).
Cylindrical grinding and edge finishing of tungsten steel tools and drills;
Ultra-precision forming and polishing of semiconductor ceramics and magnetic materials;
Plane angle cleaning and surface finishing of silicon carbide composite materials and titanium alloys.
|

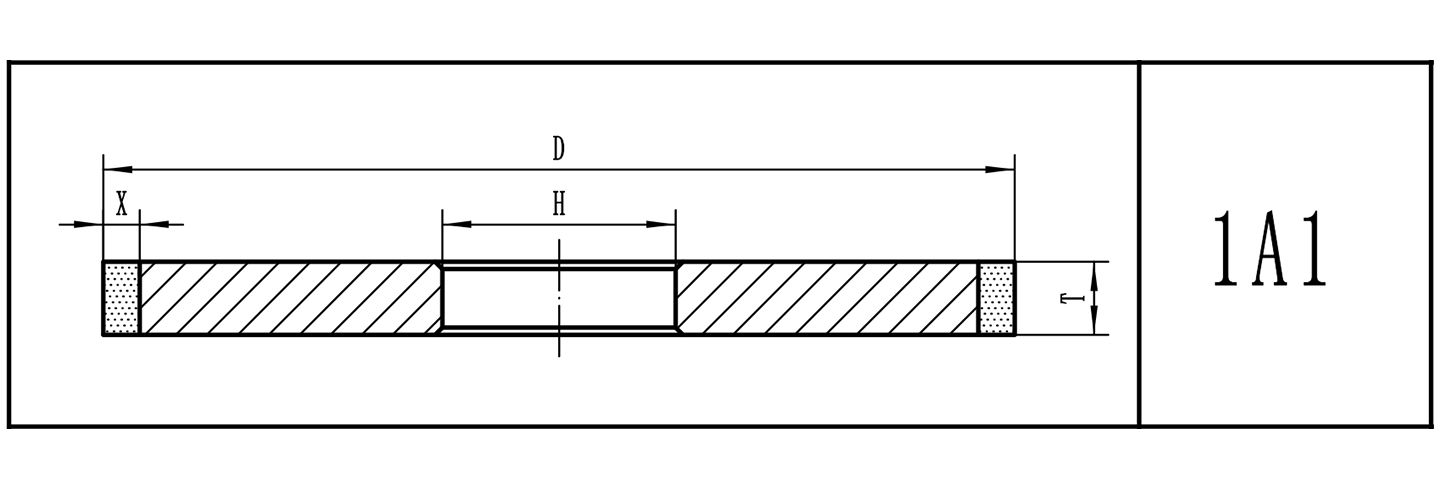

直径 （Diameter）D |
孔径 （Hole）H |
厚度 （Thickness）T |
磨料宽度 （Abrasive Width）W |
|
|
|
25 |
10 |
6 |
6 |
|
|
50 |
12 |
6 |
6 |
|
|
100 |
20 |
10 |
10 |
|
|
200 |
32 |
10 |
10 |
|
|
300 |
127 |
25 |
10 |
|
|
600 |
254 |
25 |
10 |
|
|
750 |
304.8 |
25 |
50 |
|
If you need to customize other sizes of grinding wheels, please send us the size information you need, including diameter/aperture/thickness/abrasive width/grain size to our email address, and we will contact you as soon as possible and give you a quote. |
||||
